Details
Single Shot Areal Imaging

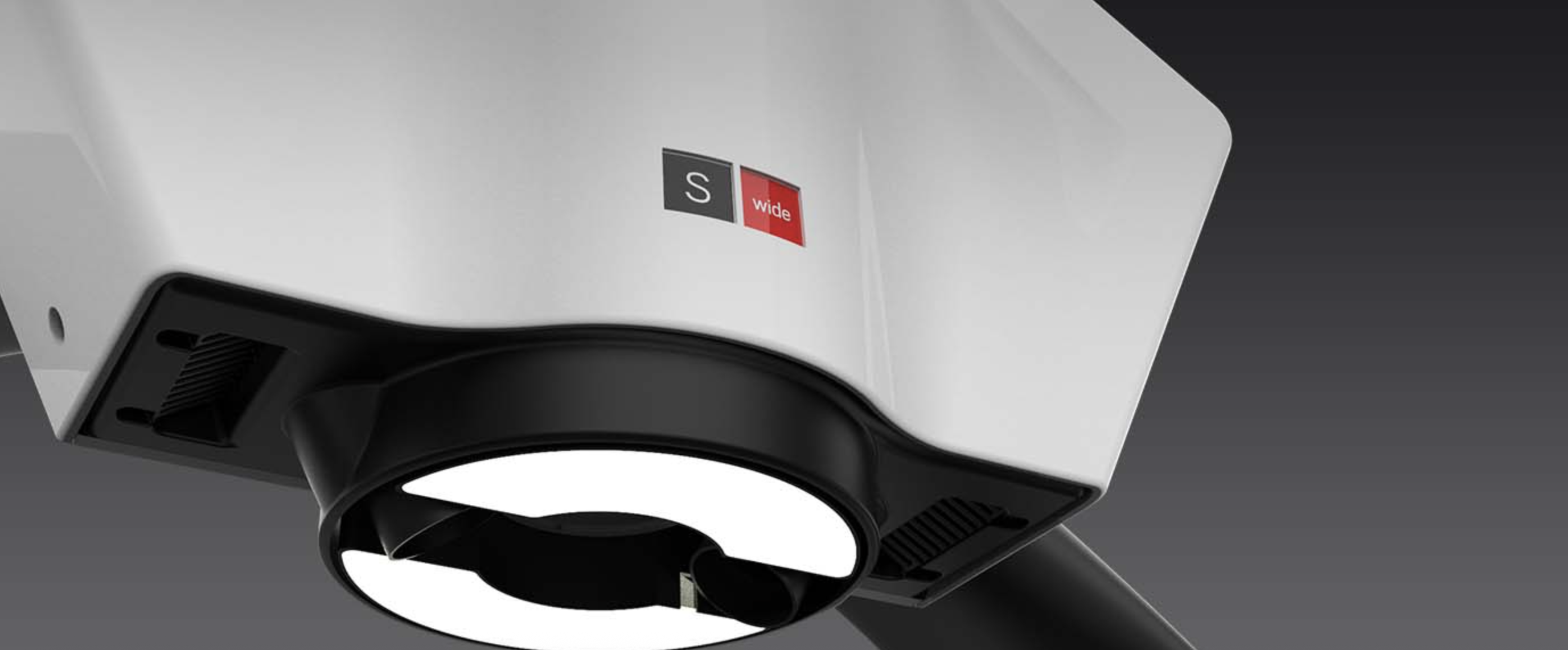

Large area 3D profiler
The S wide sensor provides the benefits of a digital microscope integrated into a high resolution 3D measuring instrument. In only one shot, it acquires 35 x 29 mm of XY area and 40 mm of depth with no Z movement.Large area 3D profiler
.
The combination of proprietary Fringe Projection technology with telecentric lenses yields an excellent performance and 1 µm system noise.

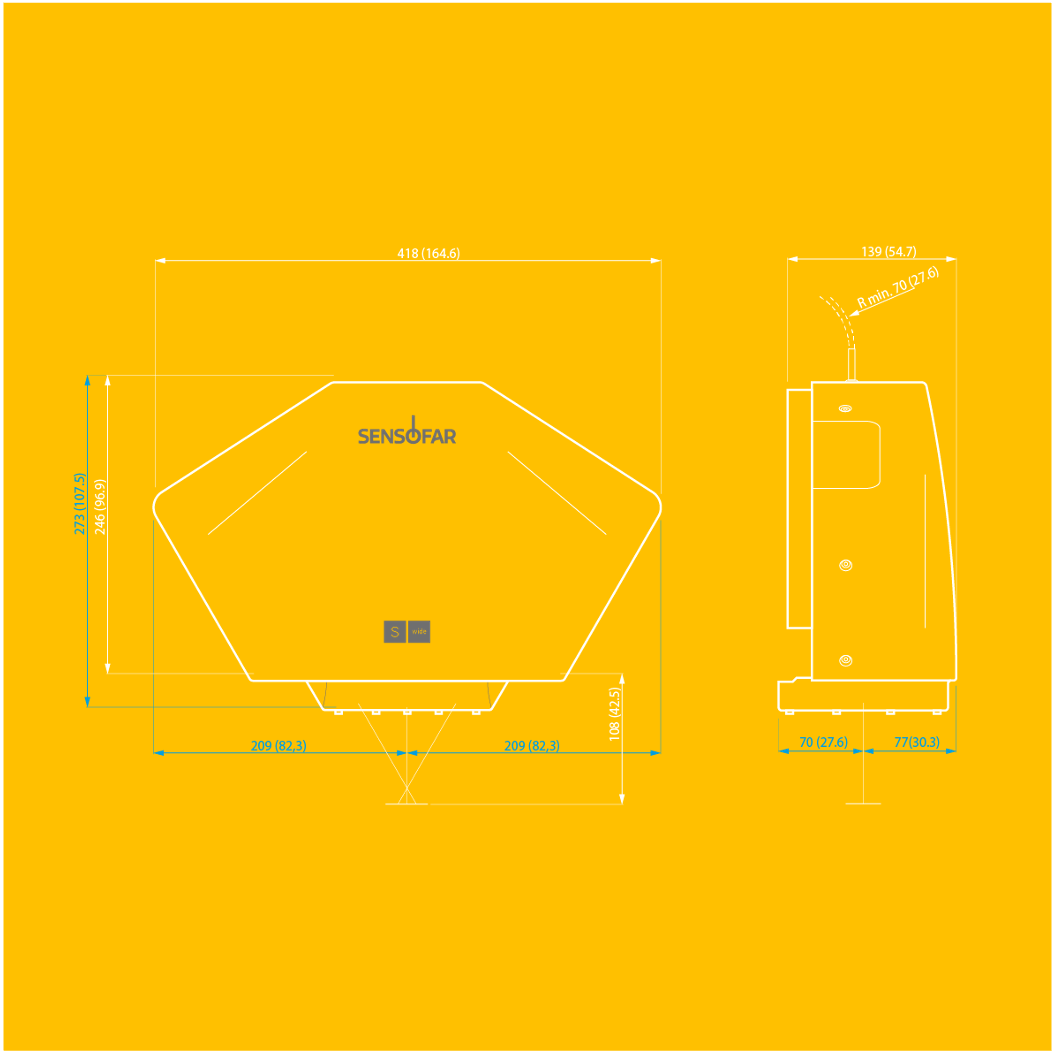

Dimensions
mm (inches)
Weight: 8 Kg (18 lbs)
Technology
Fringe Projection
Light sources
530 nm 460 nm
Objective lenses
| MAG | 0.243X |
| NA | 0.015 |
| WD (mm) | 80 |
| FOV1 (mm) | 34.7 x 29.1 |
| Spatial sampling2 (µm) | 14.2 |
| Optical resolution3 (µm) | 9.35 |
1 Maximum field of view with 3/2” camera. 2 Pixel size on the surface. 3 L&S: Line and Space. Values for blue LED.
Accuracy and repeatability
| Standard | U, σ |
| Step height | U=2.5 µm, σ= 0.05 µm |
| Area roughness (Sa) | U=1 µm, σ=0.01 µm |
| Profile roughness (Ra) | U=1 µm, σ= 0.05 µm |
View more about S wide sensor on main site
